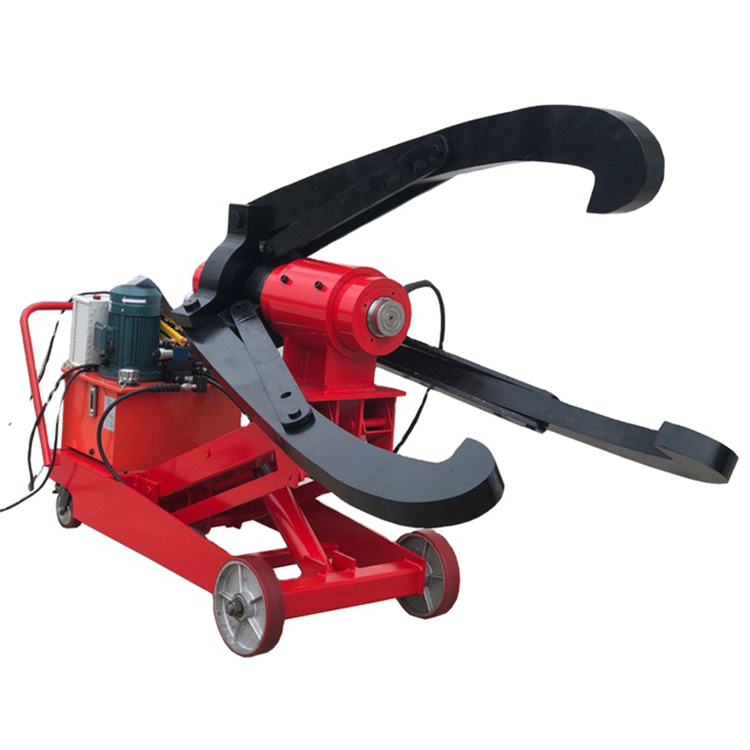

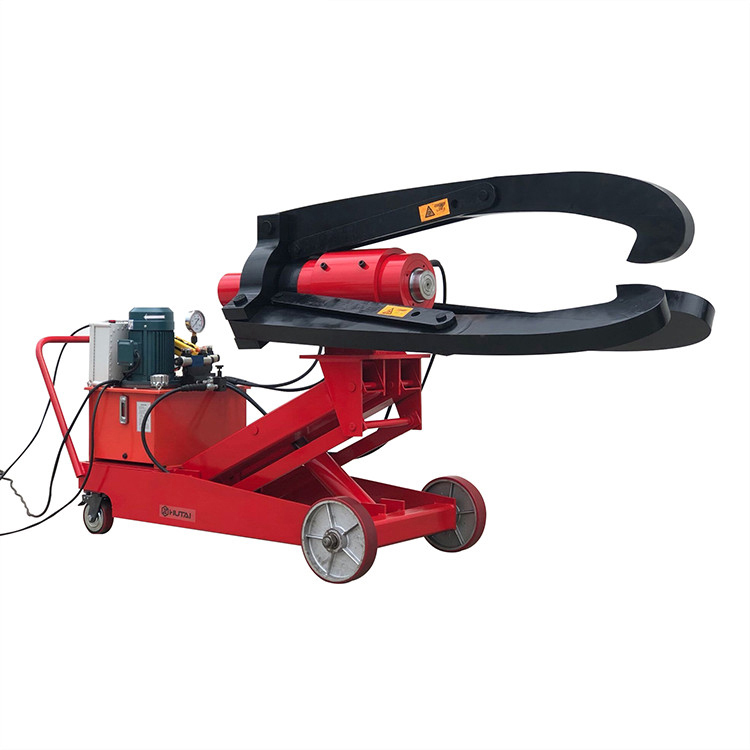

Auto Vehicle-mounted Hydraulic Puller
Features
1. Double-acting hydraulic design, used for hydraulic work-piece for large shaft and whole work piece removal;
2. Fully automatic hydraulic design – automatic hydraulic lifting, automatic clamping of work piece, automatic drawing;
3. The wheeled trolley is easy to move and can be changed at any time.
Datasheet
Model Tonnage Minimum opening (mm) Drawing depth at minimum opening (mm) Maximum opening (mm) Drawing depth at maximum opening (mm) Center height adjustment (mm) Cylinder stroke (mm) Power source Length (mm)
SENTLA50 50T 100 381 1220 178 450-1120 337 380V 2286
SENTLA50L 50T 64 651 1150 559 450-1120 337 380V 2590
SENTLA100 100T 120 580 1400 425 500-1250 320 380V 2300
SENTLA200 200T 285 680 1500 520 720- 1500 320 380V 2500
