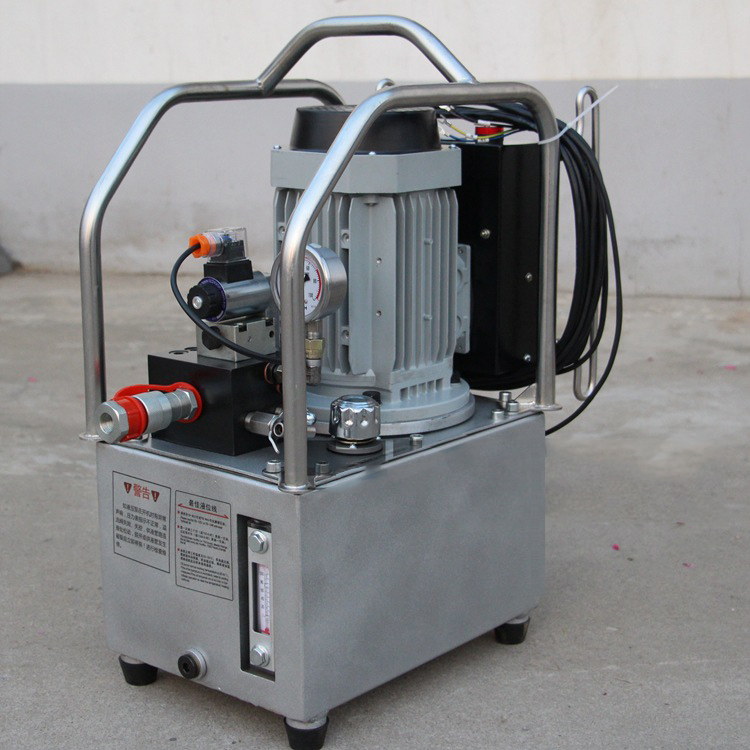

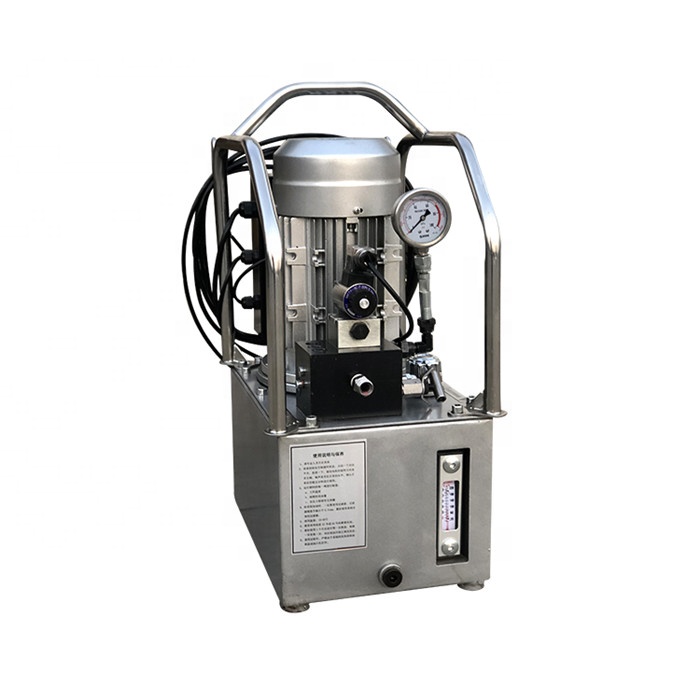

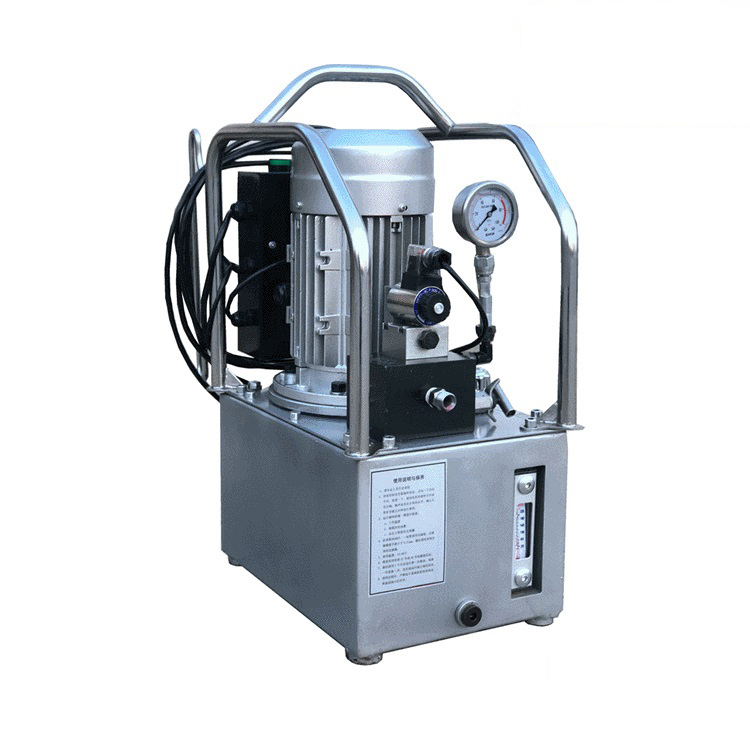

Electrical SENT Hydraulic Pump
Main structure.
Motor, integrated valve, manual pressure relief valve, distribution cabinet, oil tank, switch (wire control switch), visual oil level gauge, intelligent liquid level gauge switch, oil filler and oil outlet (inner G1 / 4).
Function introduction
The electro-hydraulic pump can be started with one key, and the operation is simple. The equipment is compact and easy to carry. Therefore, the electric pump can greatly improve the working efficiency. The power source adopts 220V high-efficiency motor, with large starting torque, stable operation and reliable performance.
Specification
| Item | Pressure | Flow | Motor Power | Moter speed | 80% the tank oil | Effective oil quantity | External size (L*W*H) | ||
|---|---|---|---|---|---|---|---|---|---|
| High Pressure | Low Pressure | High Pressure | Low Pressure | ||||||
| Unit | MPa | MPa | L/min | L/min | kW | r/min | L | L | mm |
| Data | 200 | 5 | 0.1 | 0.1 | 1.1 | 1400 | 7.5 | 5.5 | 280*200*450 |
