Introduction

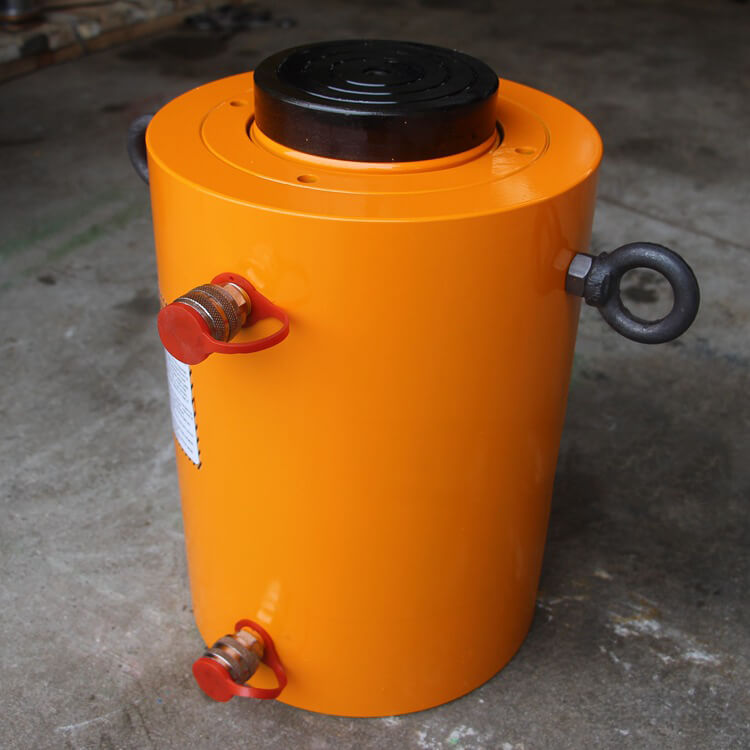

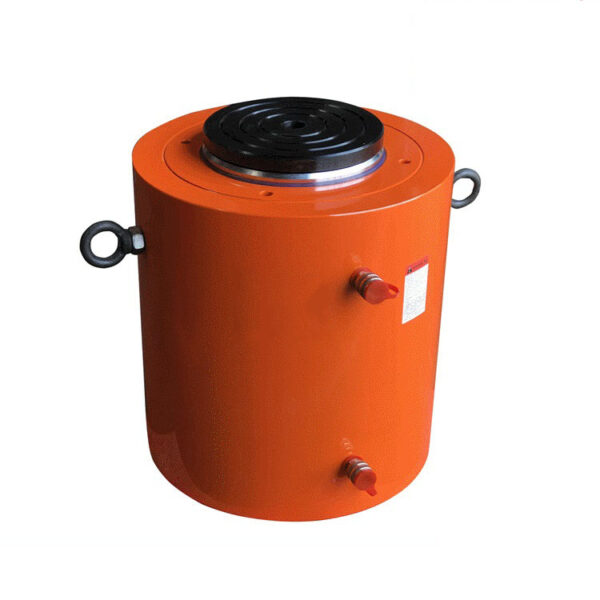

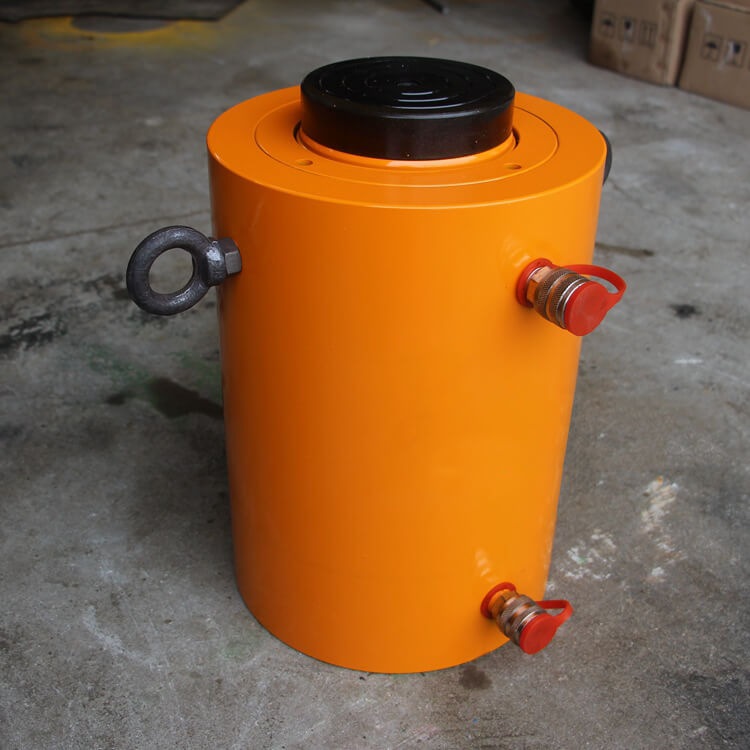

Double acting large tonnage hydraulic jack has the characteristics of large output force, light weight and long-distance operation at any spatial position. It is equipped with the electric ultra-high pressure pump station of our company. It can realize various forms of operation such as pushing, pushing, pulling, squeezing and pressing
Datasheet
| Model | Capacity | Stroke | Effective area (cm2) | Oil Capacity (cm3) | Closed Height | ||
|---|---|---|---|---|---|---|---|
| Unit | Ton | m2 | Push | Pull | Push | Pull | m2 |
| CLRG-502 | 50 | 50 | 77 | 38.5 | 385 | 192 | 162 |
| CLRG-504 | 50 | 100 | 77 | 38.5 | 770 | 385 | 212 |
| CLRG-506 | 50 | 150 | 77 | 38.5 | 1155 | 577 | 262 |
| CLRG-508 | 50 | 200 | 77 | 38.5 | 1540 | 770 | 312 |
| CLRG-5010 | 50 | 250 | 77 | 38.5 | 1924 | 962 | 362 |
| CLRG-5012 | 50 | 300 | 77 | 38.5 | 2309 | 1155 | 412 |
| CLRG-1002 | 100 | 50 | 132.7 | 61.9 | 664 | 309 | 182 |
| CLRG-1004 | 100 | 100 | 132.7 | 61.9 | 1327 | 619 | 232 |
| CLRG-1006 | 100 | 150 | 132.7 | 61.9 | 1991 | 928 | 282 |
| CLRG-1008 | 100 | 200 | 132.7 | 61.9 | 2655 | 1237 | 332 |
| CLRG-10010 | 100 | 250 | 132.7 | 61.9 | 3318 | 1546 | 382 |
| CLRG-10012 | 100 | 300 | 132.7 | 61.9 | 3982 | 1856 | 432 |
| CLRG-1502 | 150 | 50 | 198.6 | 96.5 | 993 | 482 | 196 |
| CLRG-1504 | 150 | 100 | 198.6 | 96.5 | 1986 | 965 | 246 |
| CLRG-1506 | 150 | 150 | 198.6 | 96.5 | 2978 | 1447 | 296 |
| CLRG-1508 | 150 | 200 | 198.6 | 96.5 | 3971 | 1930 | 346 |
| CLRG-15010 | 150 | 250 | 198.6 | 96.5 | 4964 | 2412 | 396 |
| CLRG-15012 | 150 | 300 | 198.6 | 96.5 | 5957 | 2895 | 446 |
| CLRG-2002 | 200 | 50 | 265.9 | 127 | 1330 | 635 | 216 |
| CLRG-2006 | 200 | 150 | 265.9 | 127 | 3989 | 1905 | 316 |
| CLRG-20012 | 200 | 300 | 265.9 | 127 | 7977 | 3809 | 466 |
| CLRG-2502 | 250 | 50 | 366.4 | 152.6 | 1832 | 763 | 235 |
| CLRG-2506 | 250 | 150 | 366.4 | 152.6 | 5497 | 2289 | 335 |
| CLRG-25012 | 250 | 300 | 366.4 | 152.6 | 10993 | 4578 | 485 |
| CLRG-3002 | 300 | 50 | 456.2 | 151.4 | 2281 | 757 | 312 |
| CLRG-3006 | 300 | 150 | 456.2 | 151.4 | 6843 | 2270 | 412 |
| CLRG-30012 | 300 | 300 | 456.2 | 151.4 | 13685 | 4541 | 562 |
| CLRG-4002 | 400 | 50 | 559.9 | 193.5 | 2800 | 967 | 375 |
| CLRG-4006 | 400 | 150 | 559.9 | 193.5 | 8399 | 2902 | 475 |
| CLRG-40012 | 400 | 300 | 559.9 | 193.5 | 16797 | 5804 | 625 |
| CLRG-5002 | 500 | 50 | 730.6 | 247.6 | 3653 | 1238 | 419 |
| CLRG-5006 | 500 | 150 | 730.6 | 247.6 | 10959 | 3713 | 519 |
| CLRG-50012 | 500 | 300 | 730.6 | 247.6 | 21918 | 7427 | 669 |
| CLRG-6002 | 600 | 50 | 855.3 | 295.4 | 4276 | 1477 | 429 |
| CLRG-6006 | 600 | 150 | 855.3 | 295.4 | 12829 | 4431 | 529 |
| CLRG-60012 | 600 | 300 | 855.3 | 295.4 | 25659 | 8862 | 679 |
| CLRG-8002 | 800 | 50 | 1176.3 | 387 | 5881 | 1935 | 474 |
| CLRG-8006 | 800 | 150 | 1176.3 | 387 | 17644 | 5806 | 574 |
| CLRG-80012 | 800 | 300 | 1176.3 | 387 | 35288 | 11611 | 724 |
| CLRG-10002 | 1000 | 50 | 1465.7 | 541.7 | 7329 | 2709 | 564 |
| CLRG-10006 | 1000 | 150 | 1465.7 | 541.7 | 21986 | 8126 | 664 |
| CLRG-100012 | 1000 | 300 | 1465.7 | 541.7 | 43972 | 16252 | 614 |
Features
It is used in transportation, railway, bridge, shipbuilding, construction, industrial and mining enterprises for equipment jacking, installation, commissioning, maintenance, underground pipe jacking and other operations
