Hydraulic Puller Sets (BHP Series)
Short Description:
Product Features:
1. Hydraulic puller sets are widely used in dismounting of bearings, gears, couplings, pulley, fringe wheels in metallurgy, electric power, petrochemical, paper mill, cement plant and large equipment maintenance field.
2. Supplied with a full hydraulic set including pump, hose, cylinder, gauge and gauge adaptor.
3. Standard hydraulic puller sets include grip puller sets, cross bearing puller sets, bearing cup puller sets and accessories.
4. High quality, forged steel components provide superior reliability and service.
5. Sets include speed crank and adjusting screw for fast contact to work before hydraulics are applied.

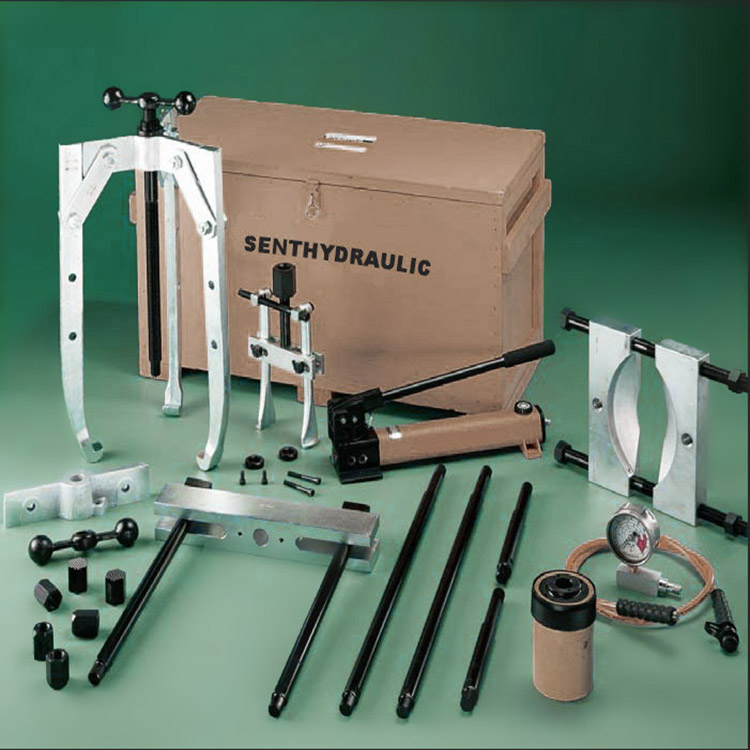

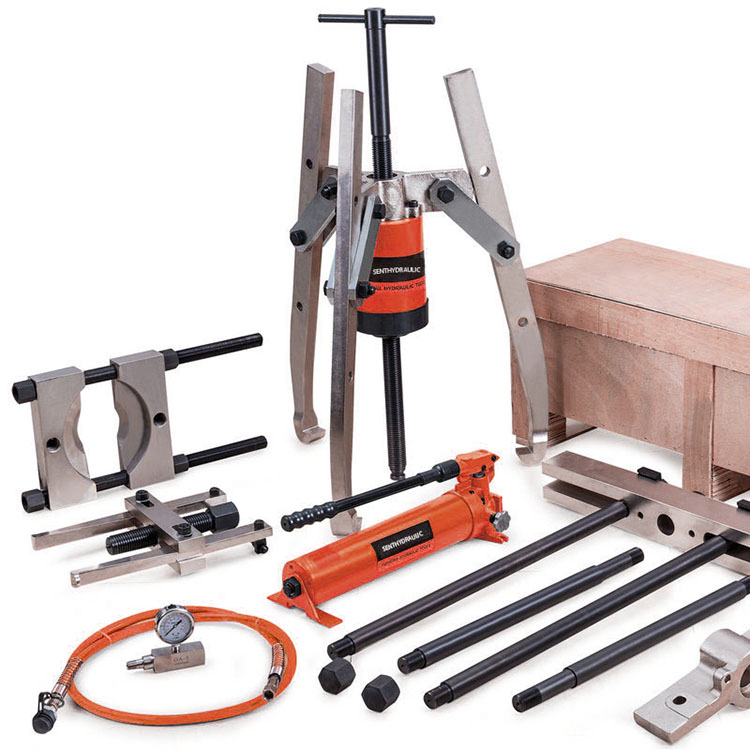

Master Puller Set
- Supplied with a full hydraulic set including pump, hose, cylinder, gauge, gauge adaptor and wooden case.
- High quality, forged steel components provide superior reliability and service
- Sets include speed crank and adjusting screw for fast contact to work before hydraulics are applied.
- All Master Puller Sets include a Grip Puller, a Cross Bearing Puller, a Bearing Cup Puller and a Bearing Separator,which can be ordered separately, see items nr. 10, 20 , 30 and 40.

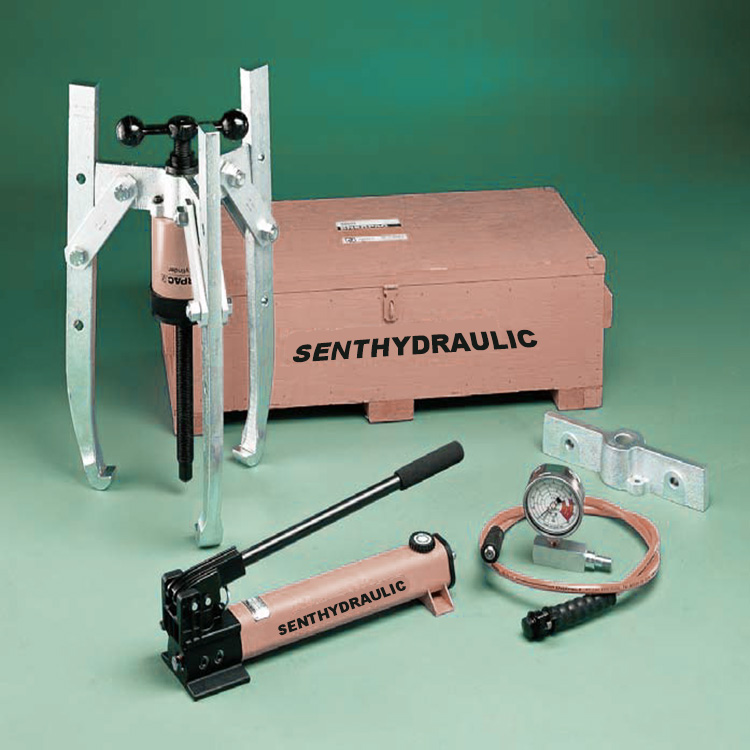

Grip Puller Set BHP-351G
- Precise hydraulic control allows fast, efficient and safe pulling
- High quality, forged steel components provide superior reliability and service
- Available with and without full hydraulic set.

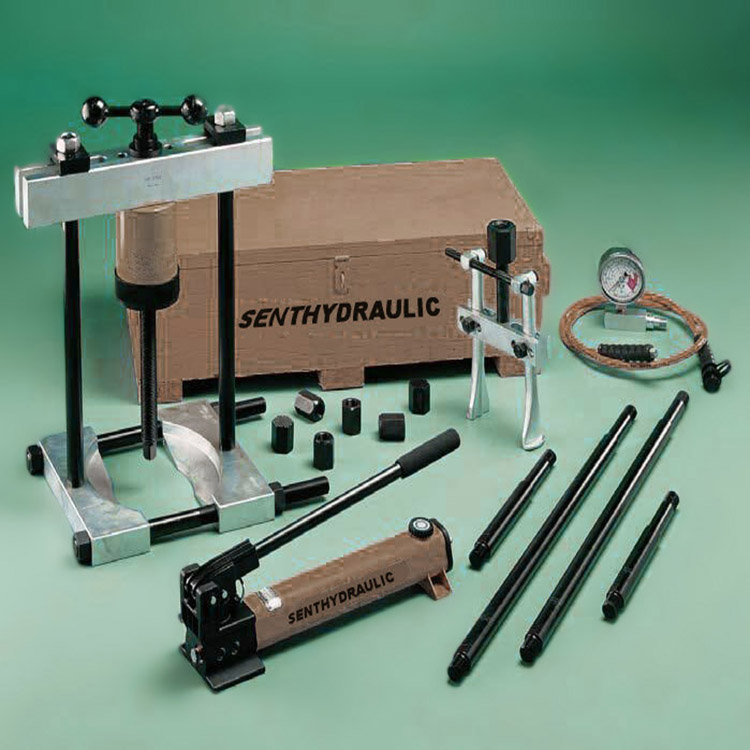

Cross Bearing Puller Set BHP-361G
- Precise hydraulic control allows fast, efficient and safe pulling
- High quality, forged steel components provide superior reliability and service.

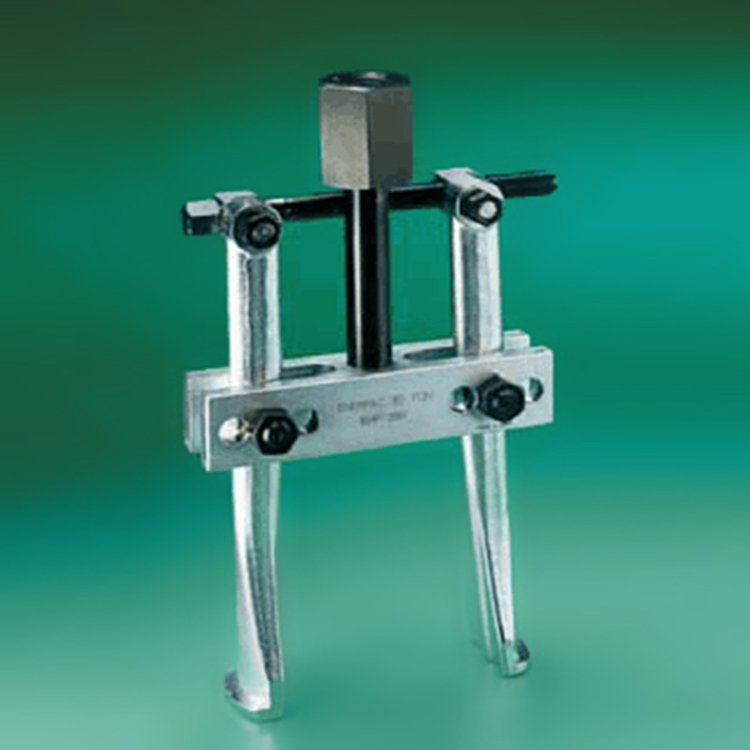

Bearing Cup Pullers
- Made of high strength steel alloy
- Easily adapted to Cross Bearing Pullers for fast and efficient removal of the most difficult parts
- Adjustable to fit a variety of bearings and seals.

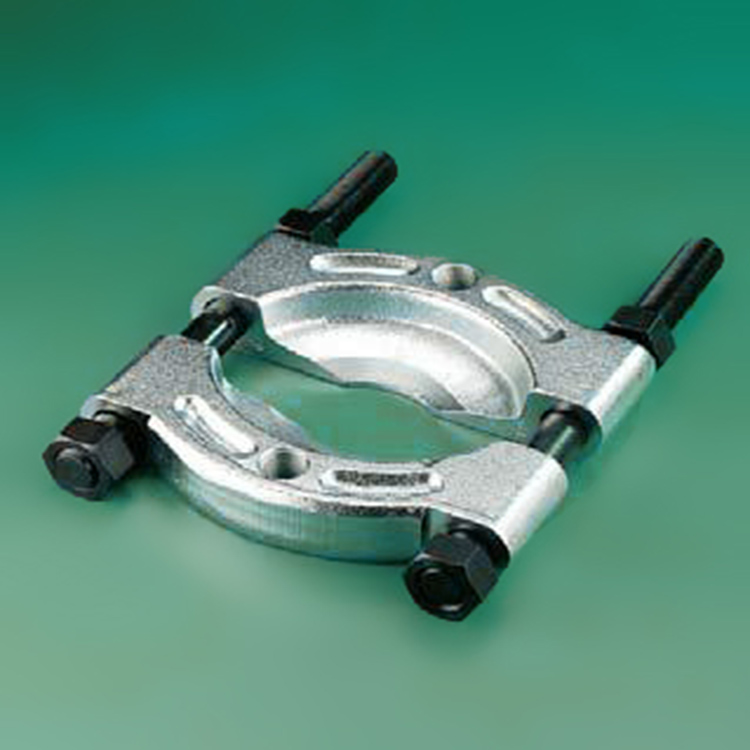

Bearing Separators
- Made of high strength steel alloy
- Wedge-shaped edges allow removal of the most hard-to-grip components
- Easily adapted to Cross Bearing Pullers for fast and efficient removal of the most difficult parts
Datesheet:
| Master Puller Set Capacity | 8 ton | 20 ton | 30 ton | 50 ton |
|---|---|---|---|---|
| Model Number | SENT-BHP-1752 | SENT-BHP-2751G | SENT-BHP-3751G | SENT-BHP-5751G |
| Included Hydraulics Set Weight | 37 kg | 90 kg | 172 kg | 298 kg |
| • Hand Pump | P-142 | P-392 | P-392 | P-80 |
| • Cylinder | RCH-121 | RCH-202 | RCH-302 | RCH-603 |
| • Saddle | – | HP-2015 | HP-3015 | HP-5016 |
| • Hose | HB-7206QB | HC-7206 | HC-7206 | HC-7206 |
| • Gauge | GF-120P | GF-813P | GF-813P | GF-813P |
| • Gauge Adaptor | GA-4 | GA-3 | GA-3 | GA-3 |
| Included Pullers | ||||
| Grip Puller | BHP-1762 | BHP-252 | BHP-352 | BHP-552 |
| Cross Bearing Puller | BHP-1772 | BHP-262 | BHP-362 | BHP-562 |
| Bearing Cup Puller | BHP-180 | BHP-280 | BHP-380 | BHP-580 |
| Bearing Separator | BHP-181 | BHP-282 | BHP-382 | BHP-582 |
| • Case | CM-6 | CW-350 | CW-350 | CW-750 |
| Puller capacity at 540 bar; maximum cylinder capacity at 700 bar is 60 ton. | ||||
| Grip Puller Set Capacity | 13 ton | 22 ton | 33 ton | 45 ton |
| Model Number | SENT-BHP-152 | SENT-BHP-251G | SENT-BHP-351G | SENT-BHP-551G |
| Included Hydraulics Set Weight | 22 kg | 56 kg | 91 kg | 160 kg |
| • Hand Pump | P-142 | P-392 | P-392 | P-80 |
| • Cylinder | RWH-121 | RCH-202 | RCH-302 | RCH-603 |
| • Saddle | –HB- | HP-2015 | HP-3015 | HP-5016 |
| • Hose | 7206QB | HC-7206 | HC-7206 | HC-7206 |
| • Gauge | GF-120P | GF-813P | GF-813P | GF-813P |
| • Gauge Adaptor | GA-4 | GA-3 | GA-3 | GA-3 |
| Grip Puller * Model Number | BHP-1762 | BHP-252 | BHP-352 | BHP-552 |
| Maximum Spread (mm) 2-jaw | 249 | 400 | 593 | 899 |
| 3-jaw | 249 | 499 | 800 | 1100 |
| Maximum Reach (mm) 2-jaw | 252 | 300 | 387 | 700 |
| 3-jaw | 252 | 300 | 387 | 700 |
| Jaw (mm) Thickness | 15 | 20 | 24 | 30 |
| Width | 23 | 27 | 38 | 39 |
| Adjusting Screw (mm) Thread | ¾"- 16 unf | 1"- 8 unc | 1¼"- 7 unc | 1⅝"- 5.5 uns |
| Length | 400 | 670 | 790 | 975 |
| • Case | CW-166 | CW-166 | CW-350 | CW-750 |
| Puller capacity at 540 bar; maximum cylinder capacity at 700 bar is 60 ton. | ||||
| Cross Bearing Puller Set Capacity (at 350 bar) | 6 ton | 11 ton | 16 ton | 22 ton |
| Model Number | SENT-BHP-162 | SENT-BHP-261G | SENT-BHP-361G | SENT-BHP-561G |
| Included Hydraulics Set Weight | 26 kg | 62 kg | 121 kg | 185 kg |
| • Hand Pump | P-142 | P-392 | P-392 | P-80 |
| • Cylinder | RWH-121 | RCH-202 | RCH-302 | RCH-603 |
| • Saddle | – | HP-2015 | HP-3015 | HP-5016 |
| • Hose | HB-7206QB | HC-7206 | HC-7206 | HC-7206 |
| • Gauge | GF-120P | GF-813P | GF-813P | GF-813P |
| • Gauge Adaptor | GA-4 | GA-3 | GA-3 | GA-3 |
| Cross Bearing Puller 2) Model Number | BHP-1772 | BHP-262 | BHP-362 | BHP-562 |
| Spread (mm) Maximum | 260 | 345 | 440 | 580 |
| Minimum | 115 | 140 | 180 | 220 |
| Reach (mm) Maximum | 357 | 570 | 710 | 864 |
| Adjusting Screw (mm) Diameter | ¾"- 16 unf | 1"- 8 unc | 1¼"- 7 unc | 1⅝"- 5.5 uns |
| Length | 400 | 670 | 790 | 975 |
| Leg (mm) Length | 106 | 115 | 205 | 609 |
| Length | 357 | 240 | 460 | 864 |
| Length | – | 420 | 710 | – |
| Length | – | 520 | – | – |
| Upper Leg Ends (mm) Thread | ¾"- 16 unf | ¾"- 16 unf | 1-14 uns | 1¼"- 12 unf |
| Lower Leg Ends (mm) Thread | ⅝"- 18 unf | ⅝"- 18 unf | 1-14 uns | 1¼"- 12 unf |
| Bearing Cup Puller Model Number | BHP-180 | BHP-280 | BHP-380 | BHP-580 |
| Bearing Separator Model Number | BHP-181 | BHP-282 | BHP-382 | BHP-582 |
| • Wooden Case | CM-6 | CW-187 | CW-350 | CW-750 |
| Capacity | 6 ton | 11 ton | 16 ton | 22 ton |
| Bearing Cup Puller | ||||
| Model Number | BHP-180 | BHP-280 | BHP-380 | BHP-580 |
| Spread (mm) Max. | 145 | 160 | 240 | 240 |
| Min. | 40 | 32 | 60 | 60 |
| Reach (mm) Max. | 115 | 140 | 150 | 150 |
| Center Screw Thread | ¾”- 16 unf | 1”- 8 unc | 1¼”- 7 unc | 1⅝”- 5.5 uns |
| Bearing cup pullers rated at 50% of puller capacity. | ||||
| Capacity | 6 ton | 11 ton | 16 ton | 22 ton |
| Bearing Puller | ||||
| Model Number | BHP-181 | BHP-282 | BHP-382 | BHP-582 |
| Spread (mm) Max. | 110 | 134 | 250 | 250 |
| Min. | 10 | 12 | 17 | 17 |
| Reach (mm) Max. | 110 | 155 | 260 | 260 |
| Center Screw Thread | ⅝”-18 unf | ⅝”-18 unf | 1”- 14 uns | 1¼”- 12 unf |
| Bearing separator rated at 50% of puller capacity. |
