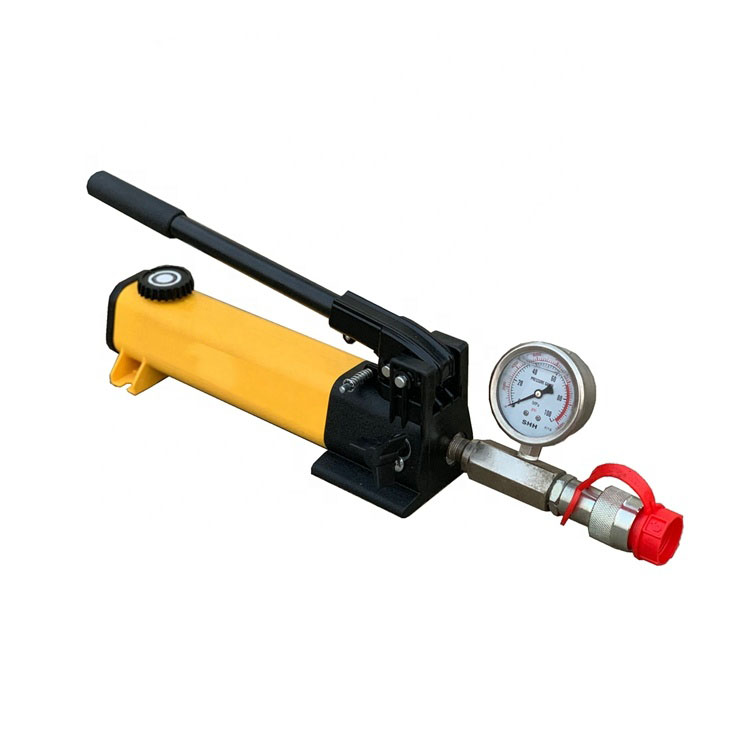

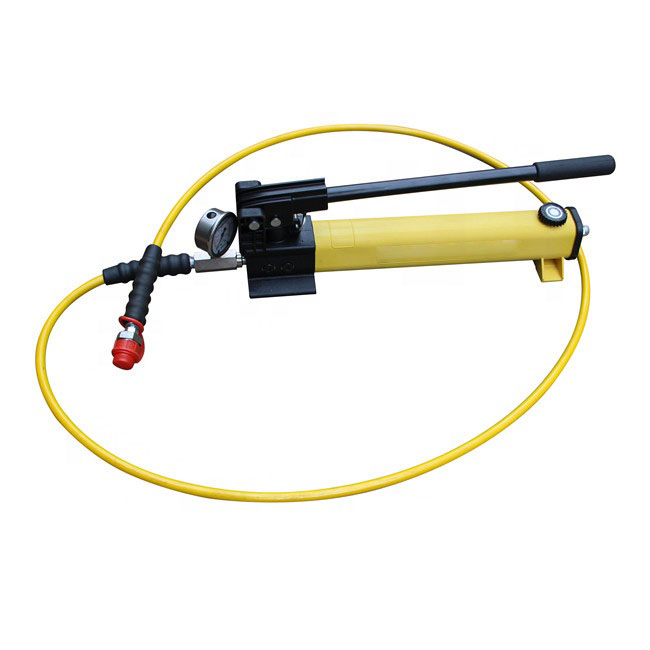

Lightweight Hydraulic Hand Pump
Light weight hand pump is a kind of small high pressure hydraulic pump that can transfer mechanical power to hydraulic power, matched with the hydraulic cylinder for lifting the heavy equipment, and also can be matched with the other hydraulic tools for bending, cutting, assembling, dismantling etc
Introduction
Light weight hand pump is a kind of small high pressure hydraulic pump that can transfer mechanical power to hydraulic power, matched with the hydraulic cylinder for lifting the heavy equipment, and also can be matched with the other hydraulic tools for bending, cutting, assembling, dismantling etc
Features
- Lightweight and compact design
- Durable and durable engineering plastic fuel tank and nylon encapsulation rate pump body with strong corrosion resistance
- Two-speed operation, handle stroke is reduced by 78% compared to single-speed operation
Specification
| Model | Available oil quantity | Pressure Level (bar) | Oil discharge per stroke (cm3) | Handle | Piston | Weight | ||
|---|---|---|---|---|---|---|---|---|
| Unit | (cm3) | LP | HP | LP | HP | Operating force (kg) | Stroke (mm) | (kgs) |
| P141 | 327 | 0 | 700 | 0 | 0.9 | 32.7 | 12.7 | 2.4 |
| P142 | 327 | 13 | 700 | 3.62 | 0.9 | 35.4 | 12.7 | 5 |
| P391 | 901 | 0 | 700 | 0 | 2.47 | 38.6 | 25.4 | 4.1 |
| P392 | 901 | 14 | 700 | "6 | 2.47 | 42 | 25.4 | 6 |
