Short Description

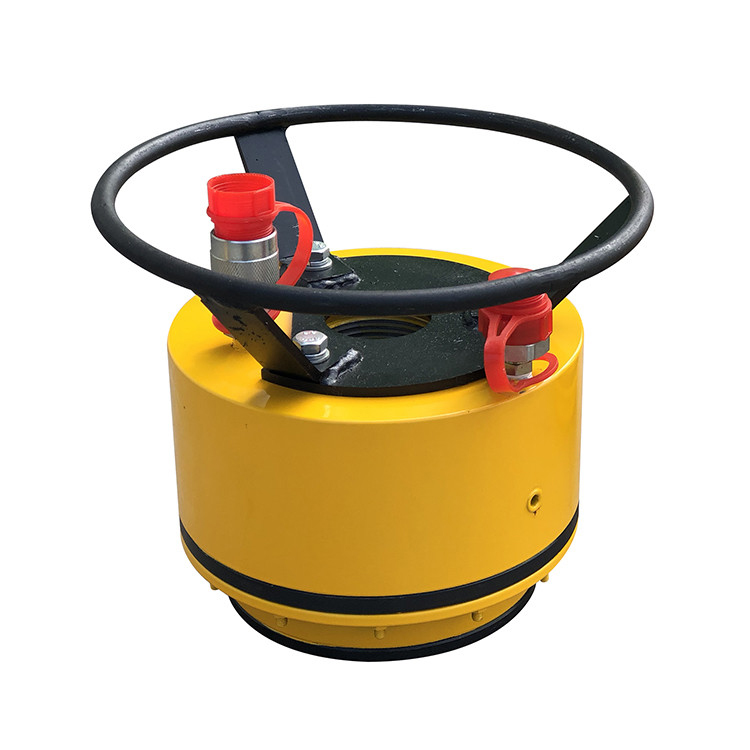

High-speed wire hydraulic roll installation tool (for high-speed wire pre-finishing, finishing rolling mill roll ring installation)
Product Features
- Lightweight: The aluminum alloy plunger is 70% lighter than the steel plunger, which reduces the overall weight of the roller tool by 25%, and has a higher working capacity and weight ratio.
- High strength: The plunger is made of aluminum-titanium alloy, and after heat treatment, its strength is comparable to that of steel.
- Corrosion resistance: The surface of the cylinder body is treated with baking paint to make the product have high corrosion resistance..
Datasheet
|
Model |
Specification | Remarks | Weight |
| HT251HG5Z | 5-inch aluminum alloy roll | Single action: pressure sleeve |
16.5 |
|
HT251HG6Z |
6 inch aluminum alloy roll | Double action: first pressure roller ring, rear pressure cone sleeve | 18.3 |
| HT251HG8Z | 8 inch aluminum alloy roll | Double action: first pressure roller ring, rear pressure cone sleeve |
23.1 |
|
HT251HG10Z |
10 inch aluminum alloy roll | Double action: first pressure roller ring, rear pressure cone sleeve | 69 |
| HT251HG10ZS | 10 inch boom loading roller | Double action: first pressure roller ring, rear pressure cone sleeve |
85 |
|
HT252HG5Z |
5-inch unloading roller | Spring reset | 13 |
| HT252HG6Z | 6 inch discharge roller | Spring reset |
14 |
|
HT252HG8Z |
8 inch unloading roller | Spring reset | 23.5 |
| HT252HG10Z | 10 inch boom unloading roller | Spring reset |
63 |
