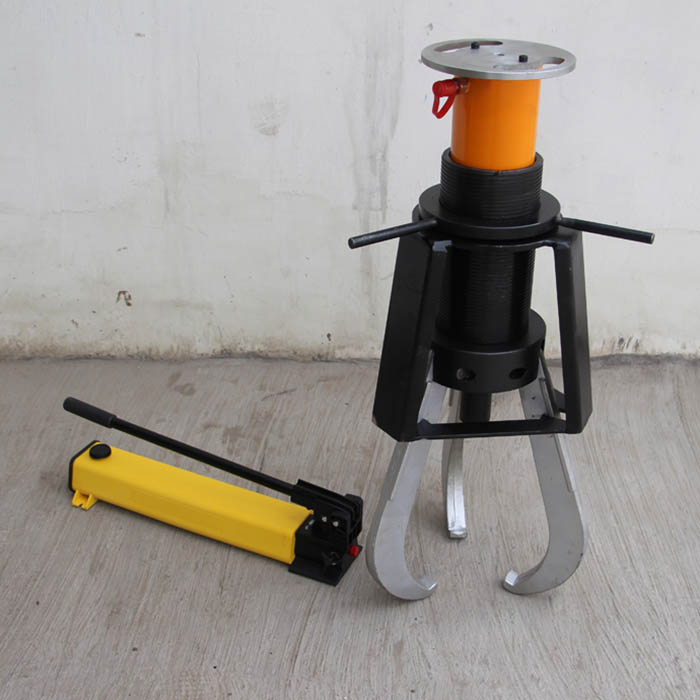

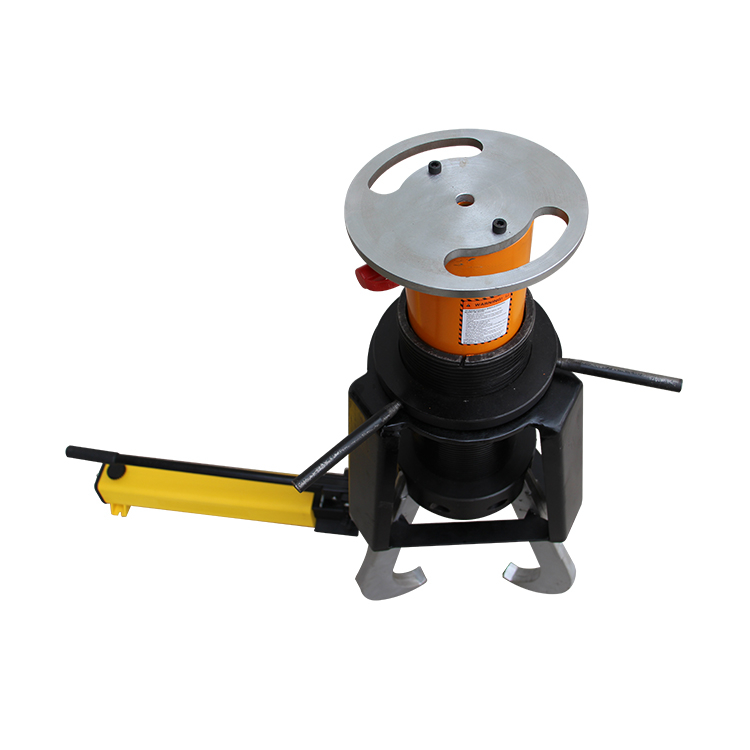

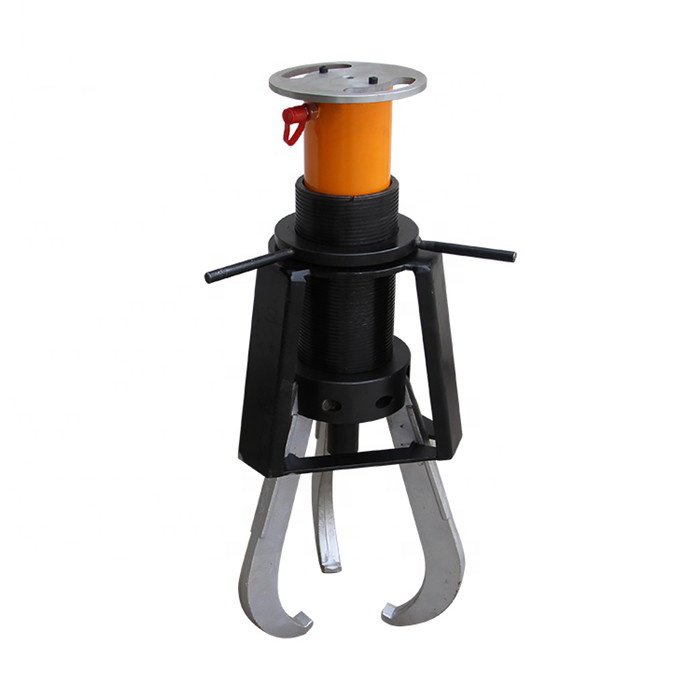

Split hydraulic anti-skid puller
Split hydraulic anti-skid puller
1.”Safety cage” design jaw system.
2.The powerful hydraulic system can easily disassemble large parts.
3.The hydraulic puller has two or three jaws to choose from.
4.The removal operation is more efficient and can be operated by one person.
Split hydraulic anti-skid puller
1.”Safety cage” design jaw system.
2.The powerful hydraulic system can easily disassemble large parts.
3.The hydraulic puller has two or three jaws to choose from.
4.The removal operation is more efficient and can be operated by one person.
Datasheet:
| Model | Number of Jaws | Capacity | Spread(Max) | Reach(Max) | Cylinder stroke | Weight |
|---|---|---|---|---|---|---|
| T（KN） | （㎜） | （㎜） | （㎜） | （㎏） | ||
| SENT-EPH-208 | 2 | 10 | 304 | 203 | 152 | 11 |
| SENT-EPH-208 | 2 | 89 | 304 | 203 | 152 | 27 |
| SENT-EPH-210 | 2 | 155 | 381 | 245 | 254 | 22 |
| SENT-EPH-210 | 2 | 133 | 381 | 245 | 254 | 39 |
| SENT-EPH-213 | 2 | 25 | 457 | 304 | 362 | 44 |
| SENT-EPH-213 | 2 | 222 | 457 | 304 | 362 | 54 |
| SENT-EPH-216 | 2 | 50 | 635 | 355 | 336 | 87 |
| SENT-EPH-216 | 2 | 444 | 635 | 355 | 336 | 123 |
| SENT-EPH-108 | 3 | 10 | 304 | 203 | 152 | 12 |
| SENT-EPH-108 | 3 | 89 | 304 | 203 | 152 | 28 |
| SENT-EPH-110 | 3 | 155 | 381 | 245 | 254 | 24 |
| SENT-EPH-110 | 3 | 133 | 381 | 245 | 254 | 40 |
| SENT-EPH-113 | 3 | 25 | 457 | 304 | 362 | 48 |
| SENT-EPH-113 | 3 | 222 | 457 | 304 | 362 | 57 |
| SENT-EPH-116 | 3 | 50 | 635 | 355 | 336 | 92 |
| SENT-EPH-116 | 3 | 444 | 635 | 355 | 336 | 128 |
