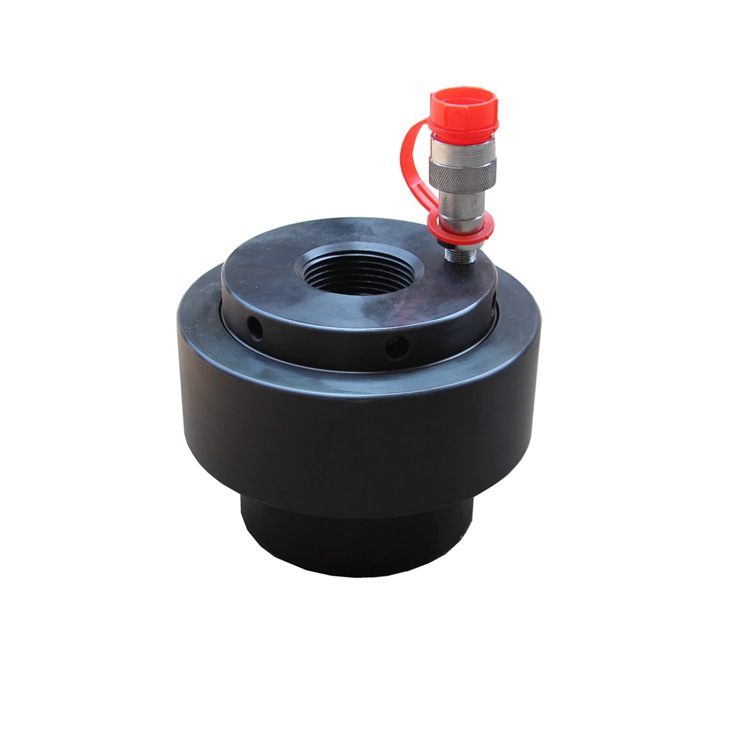

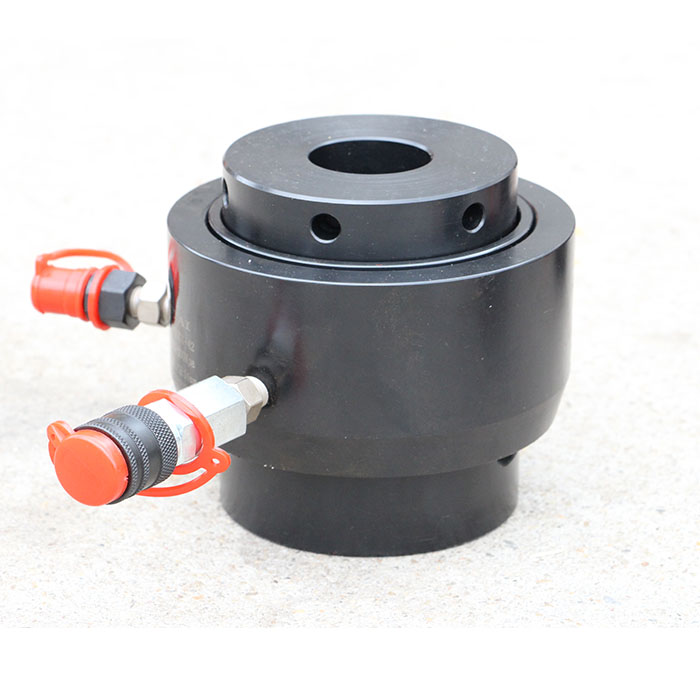

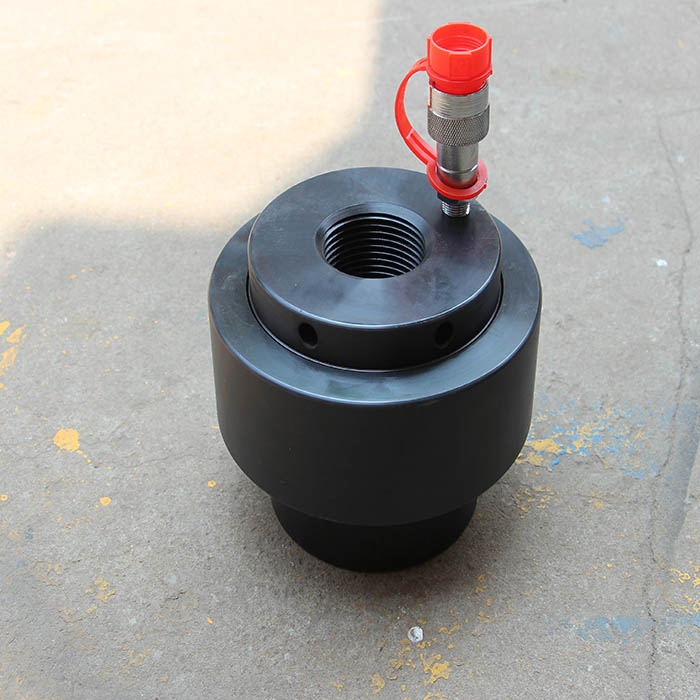

Split type Hydraulic Bolt Tensioner

Properties: Applicable to the stretching of single specification bolts.

Purpose: For installation and disassembly of bolts and nuts.

Category:

Features：

Strong versatility. It can be applied to the stretching of bolts of multiple specifications by replacing the stretching head.

Economical and efficient, light weight and high precision

It can be equipped with manual pump and pneumatic hydraulic pump

Multiple Bolt Tensioner can be used at the same time

Standard working pressure:150MPa

Application: ship, steel, petrochemical, electric power and other large equipment.

Datasheet:

ModelBolt sizeHydraulic AreaMax. loadWeight（kg）
MetricImperial（in²）（mm²）（T）（IBf）（KN）
SENT-HBT01-M161.4895414.432260143.51.3
3/4″M18
-M20
7/8″M22
SENT-HBT02-M242.95190328.6640712853.5
1″M27
1-1/8″M30
SENT-HBT03-M244.74305846103030458.35.5
1″M27
1-1/8″M30
1-1/4″M33
1-3/8″M36
SENT-HBT041-1/4″M336.9445267.02150127667.87
1-3/8″M36
1-1/2″M39
1-5/8″M42
SENT-HBT051-1/2″M3910.416716101.12264501007.310
1-5/8″M42
1-3/4″M45
1-7/8″M48
2″M52
SENT-HBT062″M5213.458677130.62925211301.215
2-1/4″M56
SENT-HBT072-1/4″M5615.71101351523404731514.517
-M60
3-1/2″M64
-M68
2-3/4″M72
SENT-HBT082-3/4″M7221.6713980210.54714922097.326
3″M76
SENT-HBT093″M7625.4916445247.5554379246629.5
-M80
3-1/4″M85
3-1/2″M90
SENT-HBT103-3/4″M9534.09219913317413973297.938
-M100
4″-
SENT-HBT114-1/4″M10540.225935389.98733373884.83/449
-M110
-M115
4-1/2″-
