Features

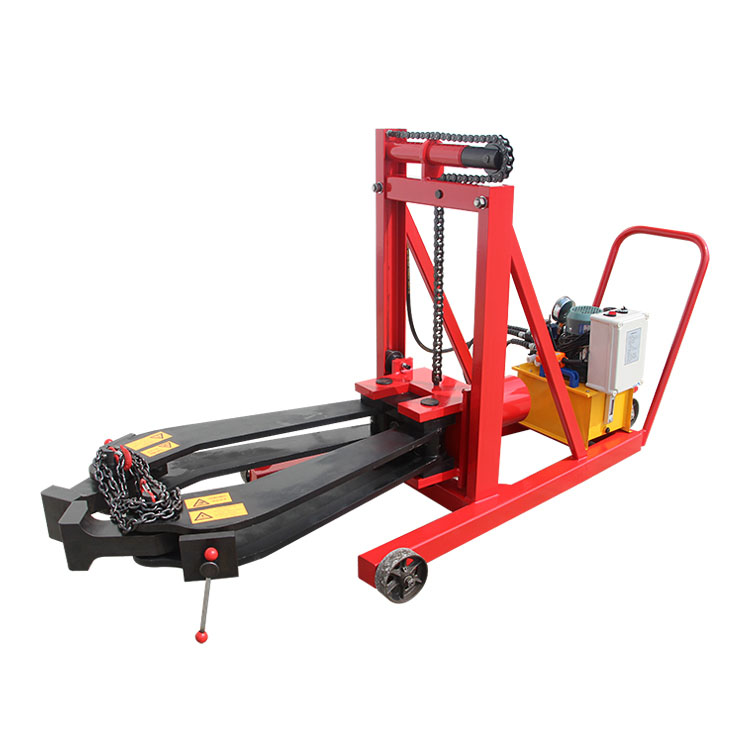

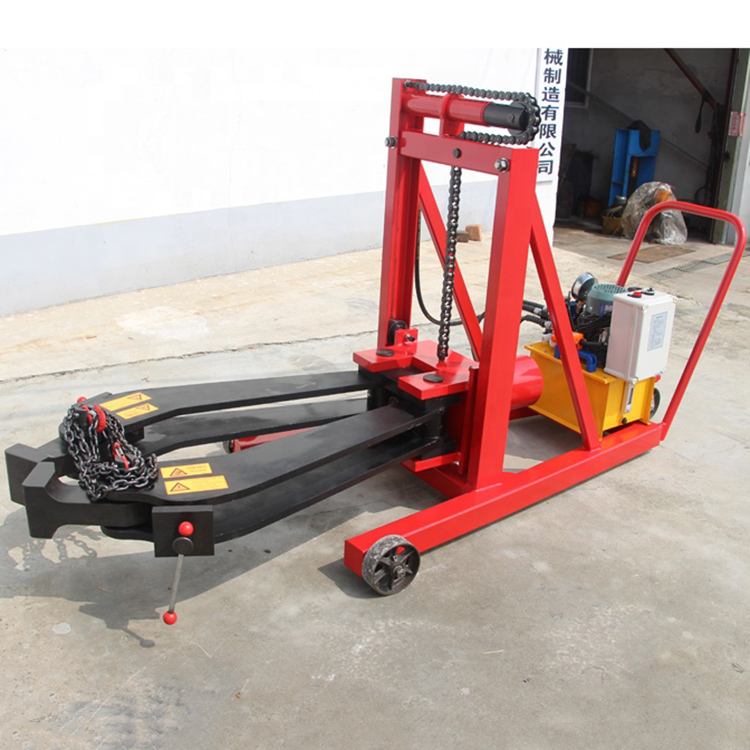

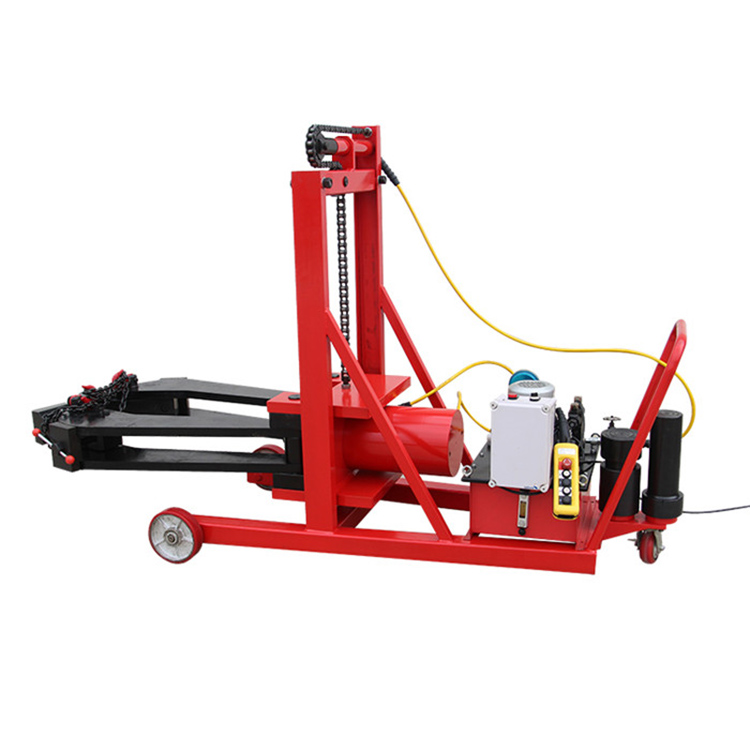

1. The hydraulic puller is equipped with an electric lifting system, and the up and down adjustment buttons can be moved to move the claw system up and down in the vertical direction;
2. The adjustable claw head causes the pulling claw to always contact the workpiece in a plane, and the clamping force is increased by holding the chain to make the positioning force of the claw head larger;
3. The double-acting hydraulic cylinder is made of high-strength alloy steel and the maximum working pressure is 70Mpa;
4. professional rod design, greatly improving the strength of the force trans­mission parts, reducing the weight of the machine;
5. The light and large stroke lifting mechanism satisfies the inconvenience of large workpieces;
6. The two-speed double-acting electric hydraulic pump adopts electromag­netic reversing and has 5M remote control line, which is easy to operate;
7. The wheeled trolley can be replaced at any time;
8. with 6 ejector heads.

How-to Choose Hydraulic Puller

1. Measure the outer diameter of the workpiece to be dismantled, the thickness of the workpiece, and the distance of the workpiece on the shaft to be dismantled;
2. When the disassembly space allows, try to use a 3-jaw extractor to get more reliable clamping force and more uniform pulling force;
3. Use the correct size wheel puller, if you use the maximum force and the workpiece is not pulled out, please use a hydraulic wheel puller with higher tonnage;
4. The general calculation of the required pulling force is about 7-10 tons for a 1 inch (25.4mm) inside diameter workpiece to be removed, for example, 14-20 tons for a 2 inch (50.8mm) inside diameter workpiece;
